Rheology: Understanding the powder of Flow
Table of Contents
What is Rheology?
The word rheology comes from the Greek word rheo, meaning “to flow.” In simple terms, it is the study of how materials move or resist movement when force is applied.
- If a substance flows easily (like water), it has low viscosity.
- If it flows slowly and resists motion (like honey), it has high viscosity.
- Some substances also show elastic behaviour, meaning they can bounce back when stretched (like rubber or dough).
In pharmacy, we are mostly concerned with how liquids, semisolids, and suspensions behave when poured, spread, shaken, or squeezed out of a tube.
Why is Rheology Important in Pharmacy?
Medicines are not just about the active drug—the way they are delivered to the patient matters just as much. Here’s why rheology is critical in pharmacy:
- Consistency of Dosage Forms
- A cough syrup should not feel watery like plain water; it should have some thickness to coat the throat.
- An ointment should stay on the skin without dripping off.
- Patient Acceptability
- If a lotion is too sticky or a cream is too stiff, patients won’t like using it.
- Good rheological properties improve compliance.
- Manufacturing Ease
- During production, materials must flow properly through machines, mixers, and filling systems.
- It helps ensure smooth large-scale manufacturing.
- Stability
- Suspensions and emulsions can separate over time. By controlling this properties, we can make them more stable.
- Innovation
- Modern techniques, such as 3D printing of medicines and controlled drug release systems, depend heavily on rheological principles.
Basic Terms in Rheology
Before going deeper, let’s understand a few important terms:
1. Viscosity
Viscosity means resistance to flow.
- Water → Low viscosity (flows easily).
- Honey → High viscosity (flows slowly).
- Syrup → Moderate viscosity.
Viscosity is one of the most measured properties in powder of flow properties.
2. Elasticity
Elasticity means the ability of a material to return to its original shape after being deformed.
- Rubber band → Highly elastic.
- Dough → Elastic, but not perfect.
Some pharmaceutical gels and ointments show both flow (viscous) and elasticity together.
3. Newtonian Fluids
These are fluids whose viscosity does not change, no matter how much force you apply.
- Example: Water, alcohol, glycerin.
4. Non-Newtonian Fluids
These are fluids whose viscosity changes depending on the force or stress applied.
- Example: Ketchup (becomes thinner when shaken).
- Example: Toothpaste (flows when squeezed).
Most pharmaceutical formulations are non-Newtonian, which makes them more complex but also more useful.

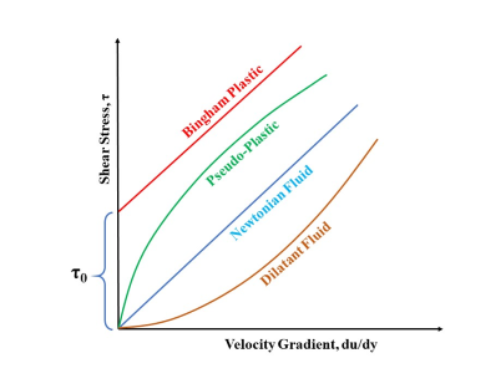

Types of Flow Behaviour
There are several flow patterns studied in pharmacy:
1. Newtonian Flow
- Constant viscosity, independent of shear rate (force applied).
- Examples: Water, thin solutions, syrups.
2. Plastic Flow
- No flow until a certain minimum force (called the yield value) is applied.
- Example: Toothpaste (you need to squeeze the tube to start the flow).
3. Pseudoplastic Flow (Shear-Thinning)
- Viscosity decreases with increasing shear rate.
- In simple words: The more you stir or shake, the thinner it gets.
- Example: Ketchup, paint, polymer solutions, and many gels.
- Very important in pharmacy because it allows easy spreading and pouring.
4. Dilatant Flow (Shear-Thickening)
- Viscosity increases with increasing shear rate.
- In simple words: The more you stir, the thicker it becomes.
- Example: Cornstarch in water (oobleck).
- Rare in pharmacy, but studied for some suspensions.
5. Thixotropy
- Time-dependent shear thinning.
- A material becomes thinner when stirred, but thickens again when left at rest.
- Example: Some gels, suspensions, and paints.
- Very useful in pharmaceutical suspensions and ointments.
Rheology in Pharmaceutical Dosage Forms
Let’s now connect with actual dosage forms you’ll study in B. Pharma.
1. Syrups
- Should not be too watery (patients expect thickness).
- Should flow easily when poured.
- Rheology helps balance thickness with pourability.

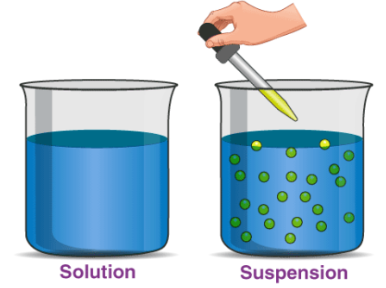

2. Suspensions
- Solid particles tend to settle down.
- By adjusting viscosity, we can slow down sedimentation and keep the suspension uniform.
- Thixotropic suspensions are preferred: they become thin when shaken, making them easy to pour, but regain thickness on standing, preventing rapid settling.
3. Emulsions
- Emulsions are prone to separation (oil and water phases).
- It helps keep them stable by controlling viscosity.
- Creamy texture in lotions and creams is directly related to rheology.
4. Ointments and Creams
- Must spread easily on the skin without being runny.
- It should not be too hard or too soft.
- Rheology ensures smooth application and patient comfort.
5. Gels
- Show viscoelastic properties.
- Important in topical, ophthalmic, and oral drug delivery.
Instruments Used in Rheology
To measure rheological properties, special instruments are used:
- Viscometers – Measure the viscosity of simple fluids.
- Example: Ostwald viscometer, Brookfield viscometer.
- Rheometers – More advanced instruments that measure both viscosity and elasticity under different conditions.
In pharmaceutical labs, the Brookfield viscometer is very commonly used for quality testing.
Applications of Rheology in Pharmacy
Let’s summarise the practical uses:
- Designing formulations with desired consistency.
- Ensuring patient compliance by improving texture and feel.
- Preventing separation in emulsions and suspensions.
- Helping in large-scale manufacturing and filling processes.
- Developing new drug delivery systems like gels, sprays, and injectable formulations.
Conclusion
Rheology may sound like a complex scientific term, but in reality, it is the science of flow and deformation that directly impacts our daily lives.
As a B. Pharma student, understanding rheology will help you connect theory with practice. From why syrups feel thick, to how ointments spread, to why suspensions need shaking—rheology has the answers.
In pharmacy, mastering rheology is not just about passing exams. It is about ensuring that patients receive safe, effective, and user-friendly medicines.
